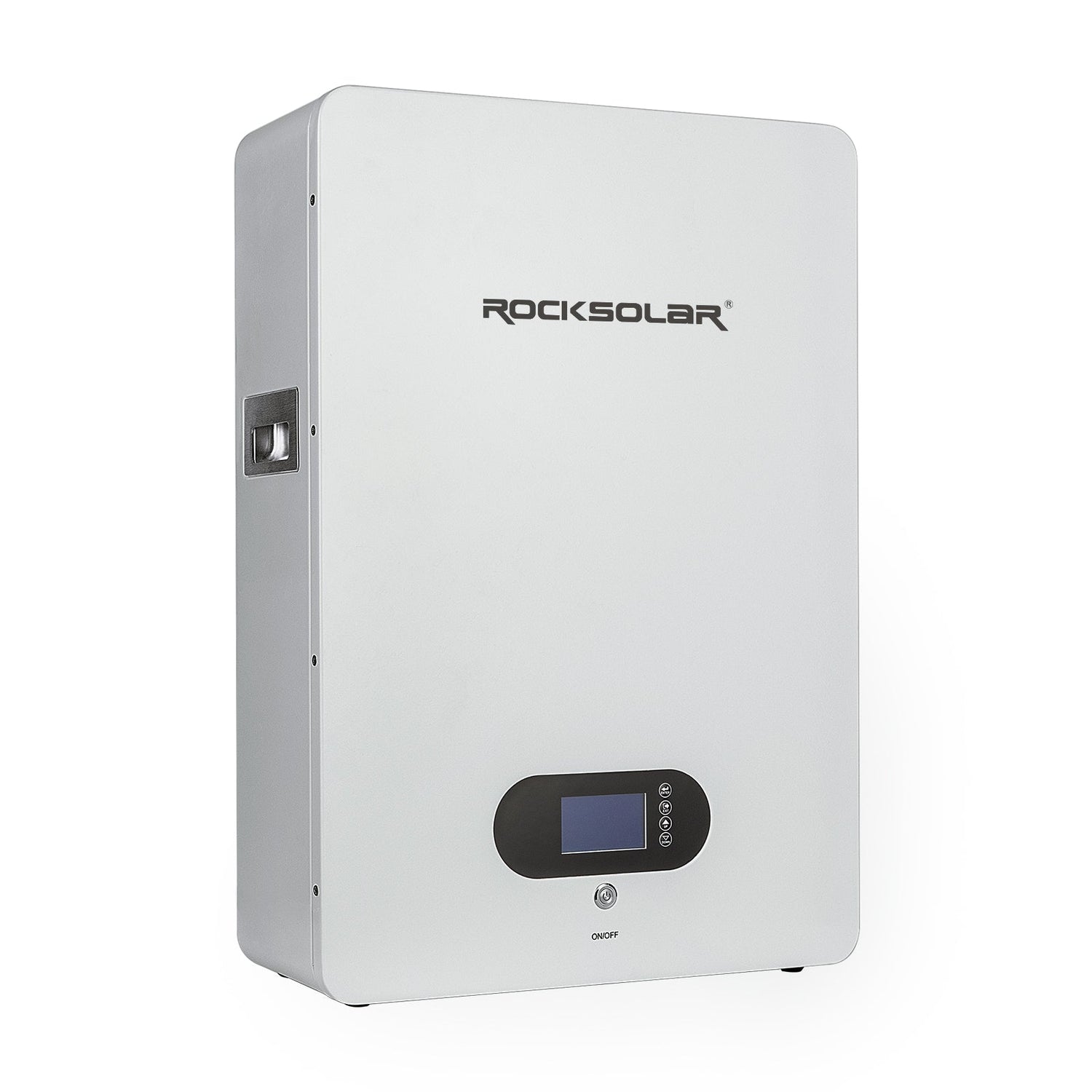

ROCKSOLAR 48V 50Ah LiFePO4 Battery Pack -
Product Name |
ROCKSOLAR 48V 50Ah LiFePO4 Battery Pack |
Model No. |
XT-P4850 |
Battery Chemistry Type |
Lithium-iron Phosphate |
Rated Capacity |
50Ah |
Rated Power |
2560Wh |
Nominal Voltage |
51.2V |
Working Voltage Range |
40.5-57.6V |
Charging Voltage |
57.6-58.V |
Internal Impedance |
≤40mΩ |
Standard charge |
Constant Current 10A, Constant Voltage :57.6V |
Standard discharge |
Constant current:10A, Discharge End voltage: 43.2V |
Maximum Continuous Charge Current |
50A |
Maximum Continuous Discharge Current |
50A |
Operation Temperature Range |
Charge: 0~45℃ |
Discharge: -20~60℃ |
|
Charging/Discharging Efficiency |
95% |
Cycle Life |
≥3000(DOD 80%) |
Storage Temperature Range |
Less than 12 months: -20~25℃ |
less than 3 months: -20~40℃ |
|
Less than 7 day : -20~65℃ |
|
Months Self Discharge |
≤3% |
Dimensions |
450*300*175mm |
Weight |
About26 Kg |
ROCKSOLAR Pure Sine Wave 48V 3500W Energy Storage Inverter Control All-in-One Machine -
Product Name |
ROCKSOLAR Pure Sine Wave 48V 3500W Energy Storage Inverter Control All-in-One Machine |
Model |
HFP4835U80-145 |
Allowable Number of Parallel Machines |
1~6 units |
Rated Input Voltage |
110/120Vac |
Input Voltage Range |
(90Vac-140Vac)±2% |
Frequency |
50Hz/ 60Hz (automatic detection) |
47±0.3Hz ~ 55±0.3Hz (50Hz); |
|
Frequency Range |
57±0.3Hz ~ 65±0.3Hz (60Hz); |

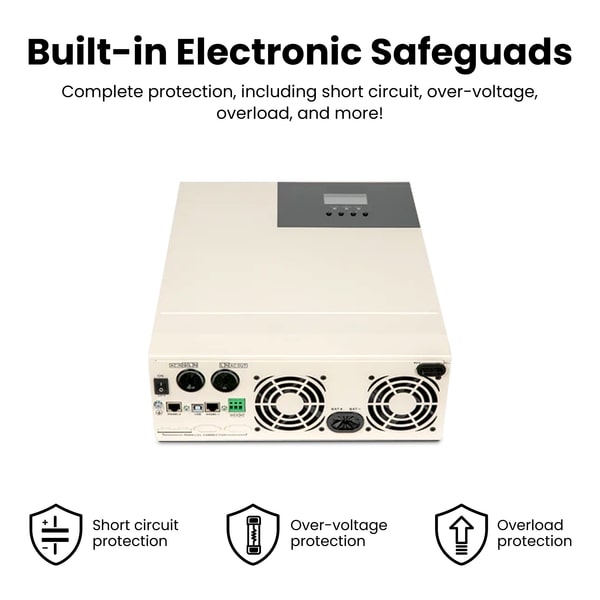

Overload/Short Circuit Protection |
breaker |
Maximum Efficiency |
>95% |
Conversion Time |
10ms (typ.) |
AC Backfeed Protection |
have |
Maximum Bypass Overload Current |
40A |
Rated Output Power (VA) |
3500 |
Rated Output Power (W) |
3500 |
Rated Output Voltage (Vac) |
120Vac |
Maximum Efficiency |
>91% |
(102%<Load<125%) ±10%: Report an Error and Turn off the Output after 5 Minutes |
|
(125%<Load<150%) ±10%: Report an Error and Turn off the Output after 10 Seconds |
|
Load>150% ±10%: Report an Error and Turn off the Output after 5 Seconds |
|
Solar Energy Storage Inverter Control All-in-One Machine |

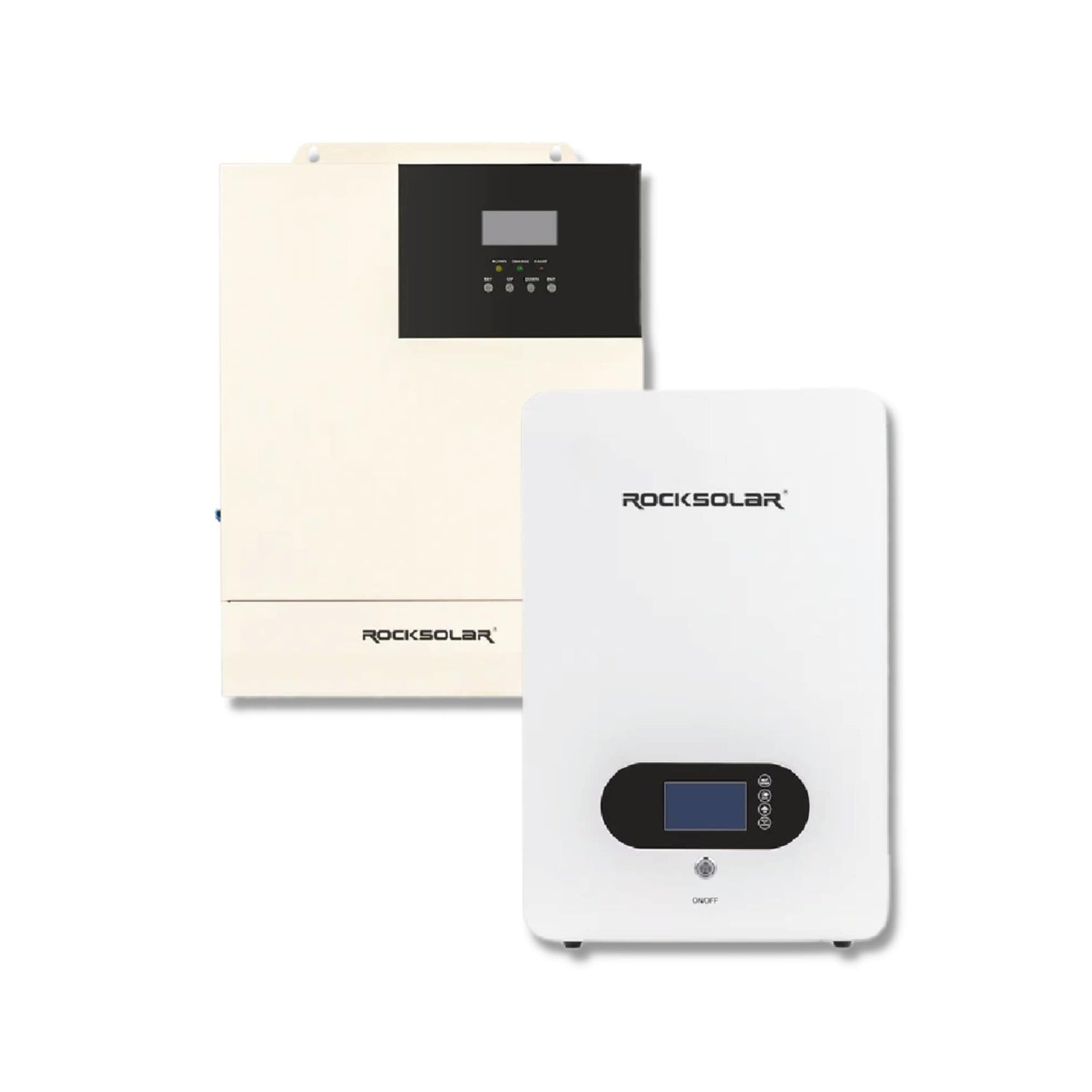

The PowerShield Series 1 Backup Power System is an energy storage solution that comprises two main components - the ROCKSOLAR 48V 50Ah LiFePO4 Battery Pack and the ROCKSOLAR Pure Sine Wave 48V 3500W Energy Storage Inverter Control All-in-One Machine.

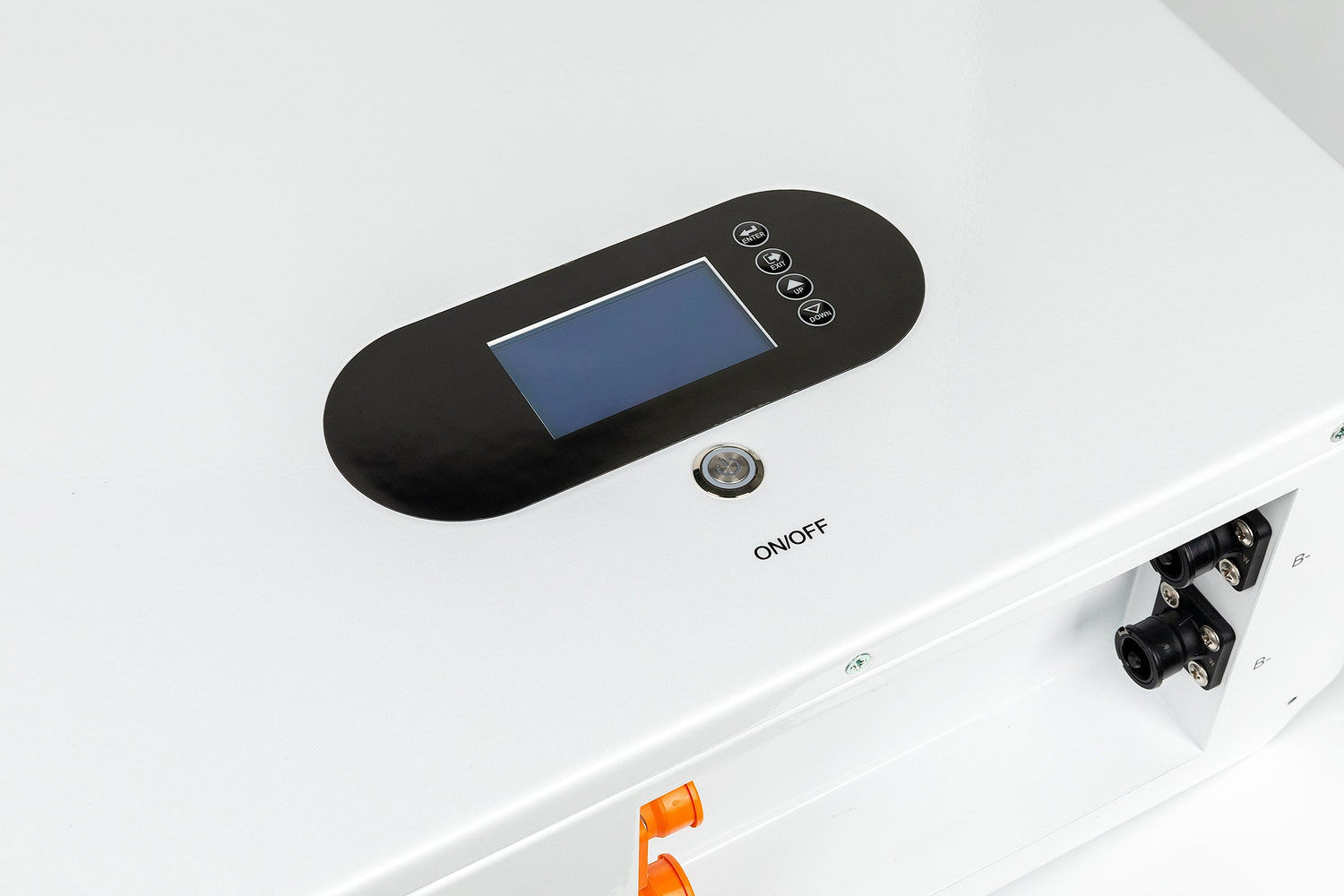

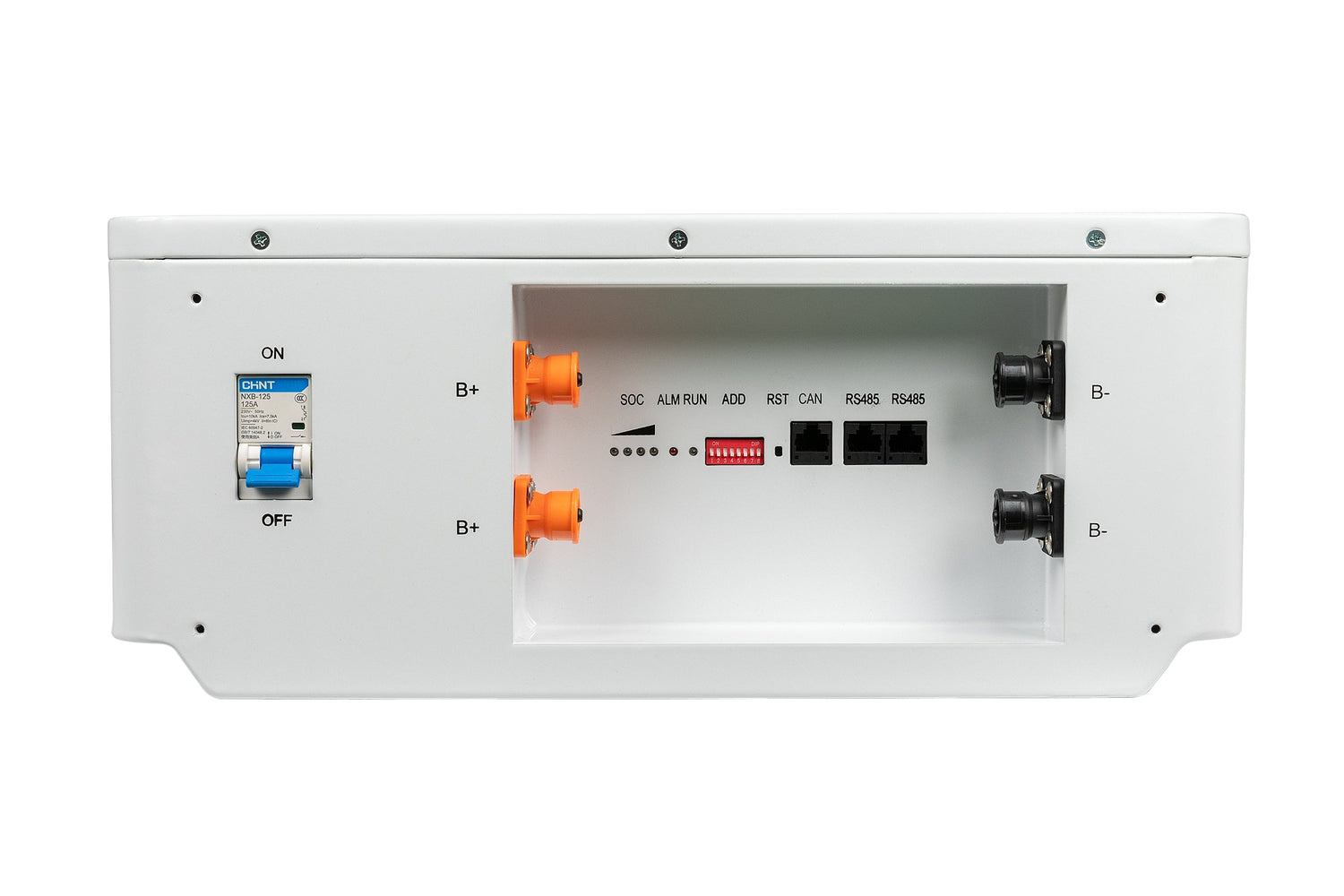

The ROCKSOLAR 48V 50Ah LiFePO4 Battery Pack features several safety functions, including over-voltage, under-voltage, over-current, short protection functions, and high/low-temperature protection, ensuring the safety and security of your home.
The ROCKSOLAR 48V 50Ah LiFePO4 Battery Pack boasts an impressive charging and discharging efficiency of 95%, making it a long-lasting and efficient energy storage solution.

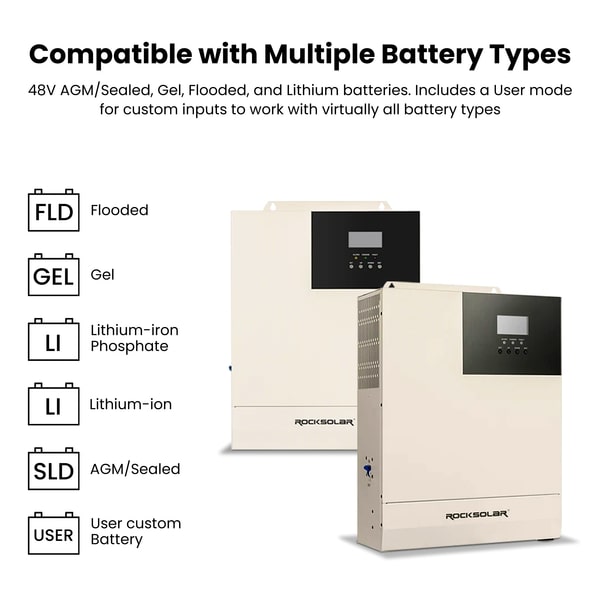

The ROCKSOLAR Pure Sine Wave 48V 3500W Energy Storage Inverter Control All-in-One Machine is an advanced solar inverter designed to output a pure sine wave, ensuring the safe and stable operation of all connected appliances.

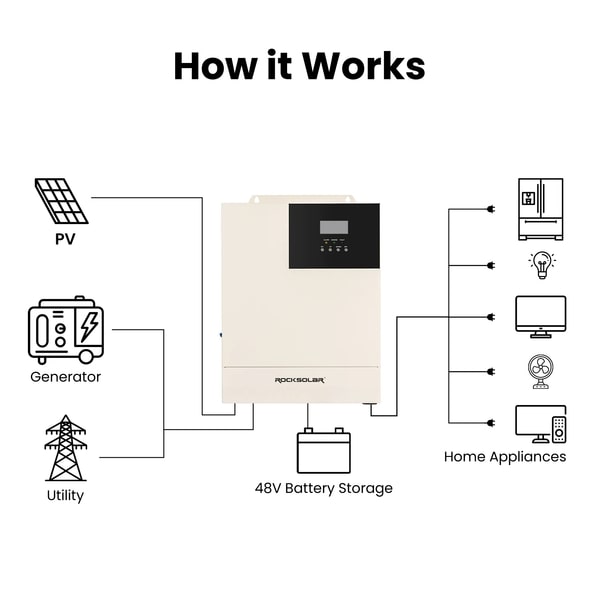

The ROCKSOLAR Pure Sine Wave 48V 3500W Energy Storage Inverter Control All-in-One Machine features two output modes of mains bypass and inverter output, providing uninterrupted power supply during power outages.
The PowerShield Series 1 Backup Power System is designed for efficiency, durability, and safety, making it a high-quality and long-lasting energy storage solution for Canadians. With this backup power system, you can rest assured that your home will have uninterrupted power supply during power outages, ensuring the safety and comfort of your family.
