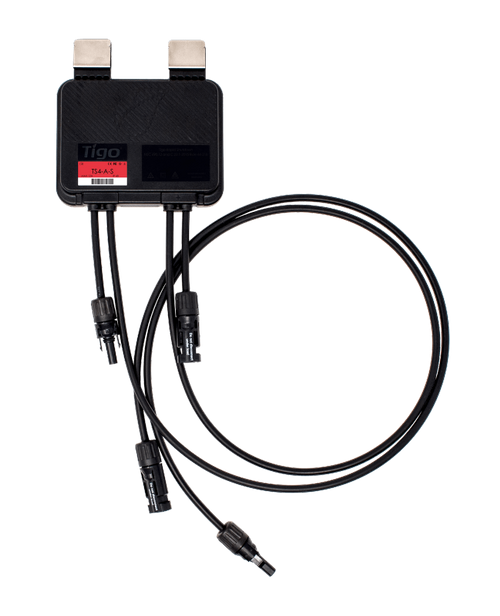

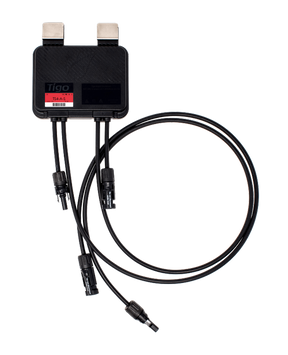

Tigo TS4-A-F Rapid Shutdown Device | Solar RSD

The Tigo TS4-A-F Rapid Shutdown Device is a reliable module-level solar safety solution designed for residential and commercial PV systems. Supporting one solar module per TS4, it provides rapid shutdown functionality through PLC communication with a compatible Tigo RSS Transmitter.

Designed to meet U.S. NEC rapid shutdown requirements, the TS4-A-F is UL PVRSS certified with a broad range of compatible inverters and supports solar modules up to 725W.

Key Features

• Supports solar modules up to 725W
• 12–80V operating range
• Up to 22A current
• One TS4-A-F per solar module
• PLC communication
• MC4 connectors
• UL and IEC certified
• Meets U.S. NEC rapid shutdown safety requirements
• UL PVRSS certified with hundreds of compatible inverters
• Snaps directly onto the solar module frame
• No ground wire required
• 25-year warranty

Simple Module-Level Rapid Shutdown

The Tigo TS4-A-F communicates with the Tigo RSS Transmitter using a PLC “keep-alive” signal. When that signal is removed, the TS4 units enter rapid shutdown mode, helping reduce DC voltage on the rooftop during emergencies or system shutdown.

For compatible inverters with an integrated RSS Transmitter, installation can be simplified without requiring a separate external transmitter.

Ideal for rooftop solar installations requiring a dependable, code-compliant rapid shutdown solution with broad inverter compatibility.
