Growatt 5kWh Hybrid Home Energy Storage System | 5kW Storage Inverter + 5kWh High Voltage Battery + ATS

$7,999.99 $9,999.99
Shipping calculated at checkout.
  • 5kW Hybrid Inverter: Manages solar and battery power efficiently.
  • 5kWh Battery Storage: High capacity, expandable to 30kWh.
  • 11.4kW Backup Box: Reliable power during outages.
  • Real-Time Monitoring: WiFi integrated for easy access.
  • Flexible Installation: For on-grid and off-grid systems.
  • High Efficiency: Up to 98.2% inverter efficiency.
  • Easy Expansion: Modular design for upgrades.
  • Long Warranty: 10 years on inverter, battery, and backup box.

Free Shipping

Orders Over $100? Shipping's On Us!

Hassle Free Warranty

Effortless Warranty for Your Ease.

Lifetime Customer Support

Endless Support, Because You Matter.

Description

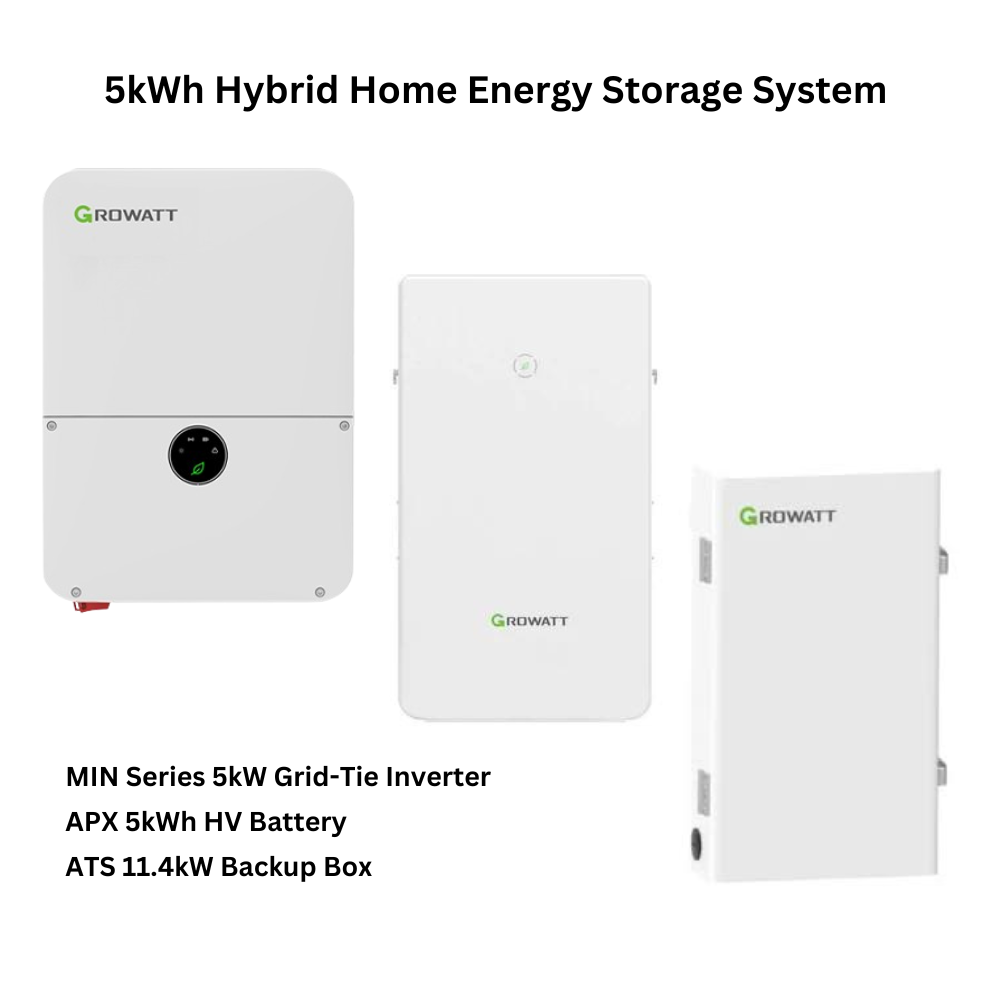

Introducing the Growatt Hybrid Home Energy Storage System

An all-in-one solution for seamless energy storage and management. This system is designed for both off-grid and grid-tie applications, ensuring that your home remains powered and efficient, regardless of grid status. The kit includes the Growatt MIN 5000TL-XH-US 5kW hybrid inverter, a high-capacity 5kWh APX high voltage battery, and the ATS-XH-US automatic transfer switch, providing a comprehensive energy storage solution.

Ideal for households with moderate daily electricity consumption, this system is particularly beneficial for homes with essential high-power loads. It maximizes self-consumption of solar energy, significantly reduces electricity bills, and ensures energy independence during power outages.

System Key Features:

  • Energy Independence: Generate and store your own renewable energy to reduce reliance on the grid.
  • Self-Consumption Optimization: Store excess solar energy during the day and use it during peak evening hours to lower electricity bills.
  • Off-Grid Capability: Automatically switch to off-grid mode during power outages, ensuring continuous power supply.
  • Flexible Energy Management: Supports multiple energy management modes including self-consumption, zero export, TOU, and off-grid.
  • High Efficiency: The Growatt MIN 5000TL-XH-US inverter boasts up to 98.2% efficiency with 4 MPP trackers.
  • Easy Monitoring: Built-in WiFi communication for real-time monitoring via mobile app or web portal.

Growatt MIN 5000TL-XH-US 5kW Hybrid Inverter:

  • Battery ready for DC and AC coupled systems
  • Supports backup power and dark start operations
  • Rapid shutdown solution and AFCI integrated
  • Compliant with UL1741SA, CA Rule21, and HECO standards
  • 10-year warranty for peace of mind

Growatt APX 5kWh High Voltage Battery:

  • 5kWh Capacity: Compact, efficient energy storage.
  • LFP Safety: Cobalt-free, environmentally friendly.
  • Flexible Install: Wall or floor options for any space.
  • IP66 Rated: Ready for all weather conditions.
  • Smart BMS: Optimal performance, extended life.
  • Efficient Cooling: Maintains peak operation.
  • High Voltage: Superior power efficiency.
  • 10-Year Warranty: Guaranteed support and reliability.

Growatt ATS-XH-US 11.4kW Backup Box:

  • Partial home load backup capability
  • Built-in split-phase transformer for 120V/240V output
  • Seamless operation during power outages

With the Growatt Hybrid Home Energy Storage System, achieve energy independence, reduce electricity bills, and ensure a reliable power supply for your home. Experience the efficiency and reliability of modern solar technology and battery storage in one comprehensive package.

SPECIFICATIONS

Growatt MIN 5000TL-XH-US 5kW Hybrid Inverter Details
Max. PV Input Power 10kW
Max. Input Voltage 600V
MPPT Voltage Range 210~500V
Max. Output Power 5kW
Max Efficiency 98.2%
Max. Output Current 21A
Dimensions (W/H/D) 15.75 x 22.4 x 6.98 inches (400 x 569 x 170.5 mm)
Weight 32.3 lbs (14.65 kg)
Warranty 10 Years
Safety UL1741, UL1741SA, UL1998, UL1699B, CSA C22.2
EMC FCC Part 15 Class B
Grid Regulation IEEE1547, Rule 21 (HECO Compliant)
Module APX 5.0P-B1
Nominal Capacity/Energy 100Ah/5kWh
Rated Usable Capacity/Energy 100Ah/4.5kWh
Rated Voltage 385V
Operating Voltage 330-450V
Rated Current (25℃) 7.6A
Maximum Current (25℃) 12.5A
Battery Type Cobalt Free Lithium Iron Phosphate (LFP)
Operating Temperature Range -10~50℃
Storage Conditions -20℃~50℃/7 days; -20℃~40℃/6 months; 5%-95%RH
Cooling Natural cooling
Dimensions (W/D/H) 690/185/295mm±2mm
Weight 50±1kg
Model (Power Module) APX 55027-P0
B+/B- Voltage Range 330V-450V
BAT+/BAT- Voltage Range 380-550V
Temperature Range -10~50℃
IP Rating IP66
Warranty 10 years
Communication Method CAN2.0
Certification & Licensing IEC62040/IEC62619/IEC62477/CE/UKCA/UN38.3
Environment Requirements RoHS
Growatt ATS-XH-US 11.4kW Backup Box Details
Backup Capability Partial home load backup
Output 120V/240V
Max Output Power 11.4kW
Dimensions 15.75 x 22.4 x 6.98 inches (400 x 569 x 170.5 mm)
Weight 32.3 lbs (14.65 kg)
Warranty 10 Years
Growatt Smart Meter Details
Model Smart Meter
Communication RS485
Voltage Range 100V-240V
Current Range 5A
Dimensions 120 x 65 x 45 mm
Weight 0.5 kg
Warranty 10 Years
