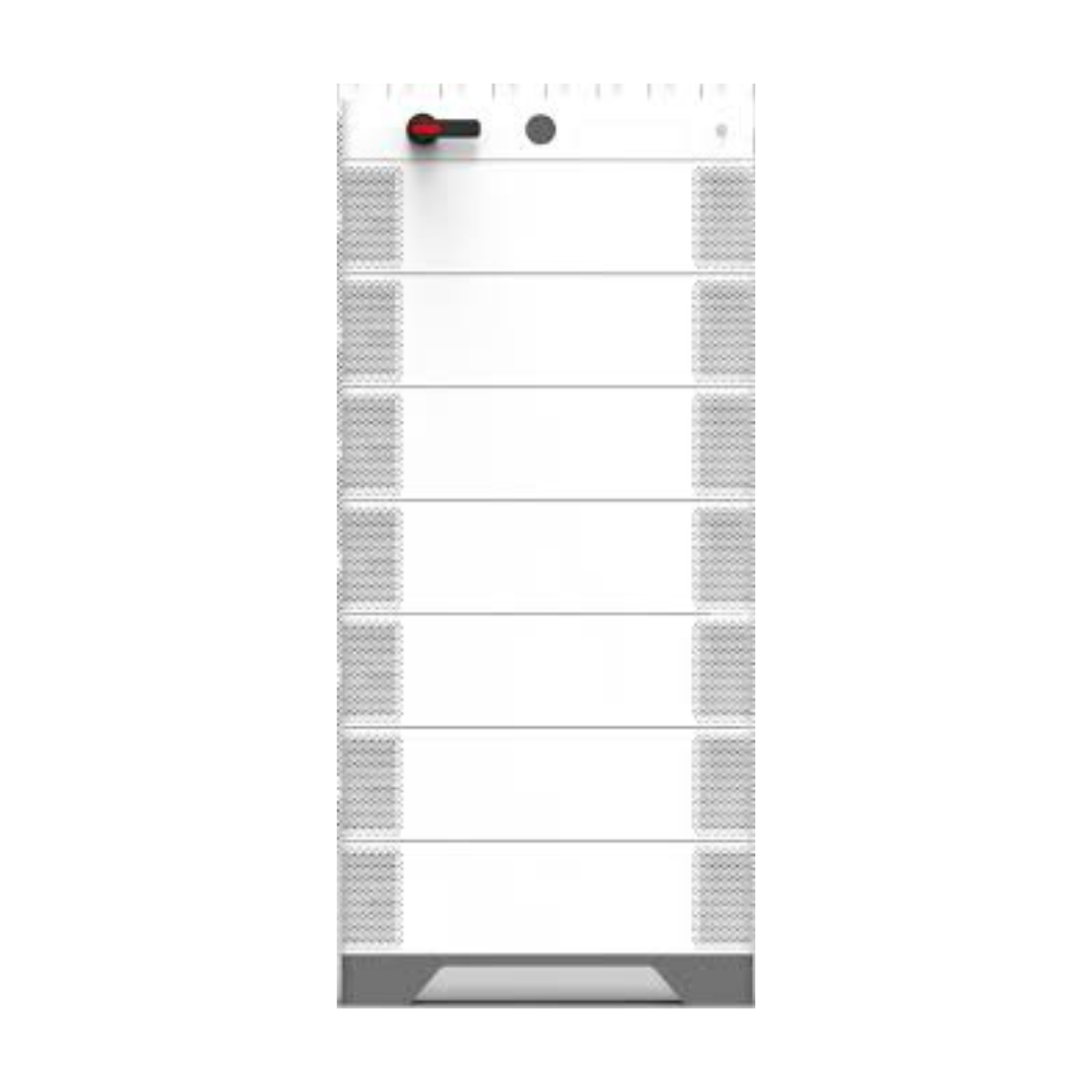

Growatt 114kWh APX Commercial LiFePO4 Battery
- 114.68kWh Nominal Energy: Ideal for large-scale energy needs.
- LFP Technology: Safe, long-lasting, cobalt-free batteries.
- Modular Design: Easy installation and scalable.
- IP66 Protection: Robust against harsh conditions.
- Intelligent Monitoring: Optimal performance and efficiency.
- Smart Air Cooling: Maintains ideal operation temperatures.
- 768V Nominal Voltage: High efficiency and powerful output.
- 10-Year Warranty: Extended reliability and support.
Growatt 114kWh APX Commercial LiFePO4 Battery is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
Growatt 114kWh APX Commercial LiFePO4 Battery
Description
Description
Growatt APX 114.6P-S1 114kWh Commercial LiFePO4 Battery: Superior Energy Solution for Large-Scale Applications
The Growatt APX 114.6P-S1 114kWh Battery System epitomizes excellence in large-scale energy storage, designed to cater to the extensive power needs of commercial and industrial sectors. This top-tier model in Growatt's APX series demonstrates the company's dedication to pushing the boundaries of battery technology and sustainability.
- Maximum Energy Capacity: Offers a nominal energy of 114.68kWh and a rated energy of 103.21kWh, making it ideal for substantial power demands.
- High Output Performance: Capable of delivering a maximum output of 57kW and peaking at 79.8kW for 60 seconds to manage peak load situations effectively.
- Advanced LFP Technology: Utilizes Lithium Iron Phosphate (LFP) batteries, known for their safety, long life, and environmental friendliness.
- Robust Design: Rated with IP66 protection, the system is engineered to withstand environmental adversities, ensuring reliable performance under varied conditions.
- Modular Flexibility: Features a modular and stacked design for ease of installation and flexible configuration, tailored to different spatial and capacity requirements.
- Efficient Cooling System: Equipped with smart air cooling technology to maintain optimal operational temperatures and enhance battery longevity.
- Scalability: Supports up to 14 units in series, allowing for an expandable energy storage capacity up to 200kWh as demands increase.
- Extensive Warranty and Certification: Comes with a 10-year warranty and is certified with global standards like IEC62619, UL1973, and more, ensuring quality and safety.
With the Growatt APX 114.6P-S1, enterprises can achieve unmatched energy efficiency, operational reliability, and a greener footprint, making it an excellent investment in their future energy strategy.
SPECIFICATIONS
SPECIFICATIONS
| Specification | Details |
|---|---|
| Number of Battery Modules | 8 |
| Nominal Energy | 114.68kWh |
| Rated Energy | 103.21kWh |
| Max Output Power | 57kW |
| Peak Output Power | 79.8kW, 60s |
| Dimension (W/D/H) | 920/510/1460 mm |
| Weight | 1172 kg |
| Compatible Inverter | WIT 50-100kW/400V series inverter |
| Nominal Voltage | 768V |
| Operating Voltage Range | 650V~945V |
| Output Full Load Voltage Range | 720V~880V |
| Nominal Capacity | 280Ah(@25℃) |
| Rated Capacity | 252Ah(@25℃) |
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
| Ingress Protection | IP66 |
| Installation | Floor installation |
| DOD | 90% |
| Operating Ambient Temperature | –10℃~50℃ |
| Relative Humidity | 5%–95% |
| Cooling | Smart air cooling |
| Altitude | ≤4000m |
| Warranty | 10 years |
| Communication Port | CAN |
| Operating Voltage Range (Communication Port) | 250V~950V |
| Maximum Current | 125A |
| Certification & Licensing | IEC62619(Cell&Pack)/IEC60730/VDE2510-50/CE/CEC/RCM/UN38.3/UL1973/UL9540/UL9540A/FCC |
