Catalogue · 18 products

Residential Metal Roof

Mounting hardware for solar on a standing-seam or exposed-fastener metal roof, built around the S-5! clamp system: the clamp grips the seam without a single hole in the roof, and the PVKIT grabs hold the panel to the clamp, so most metal-roof arrays go up with no rails at all.

Read moreRead less

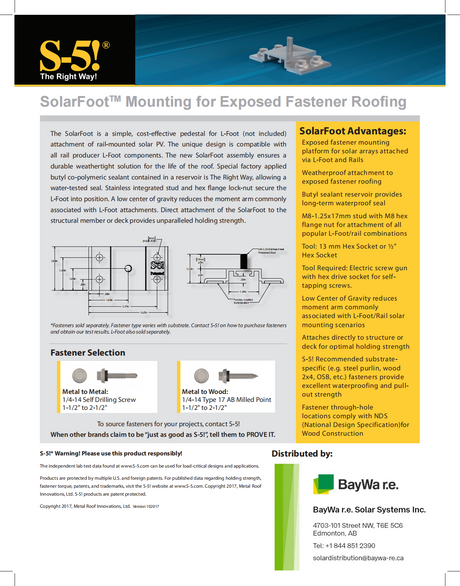

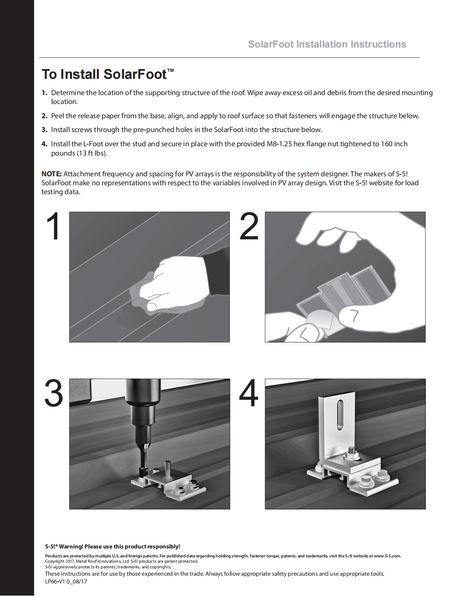

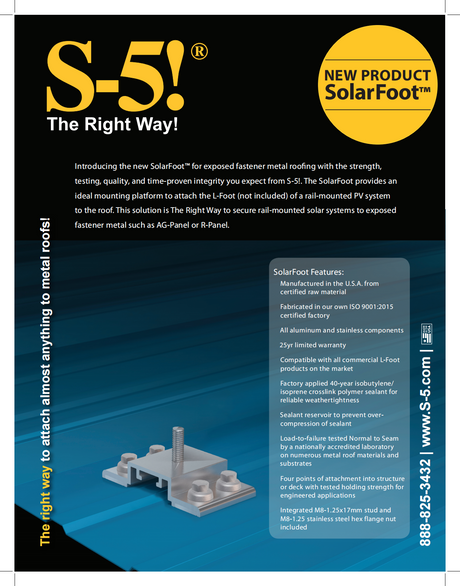

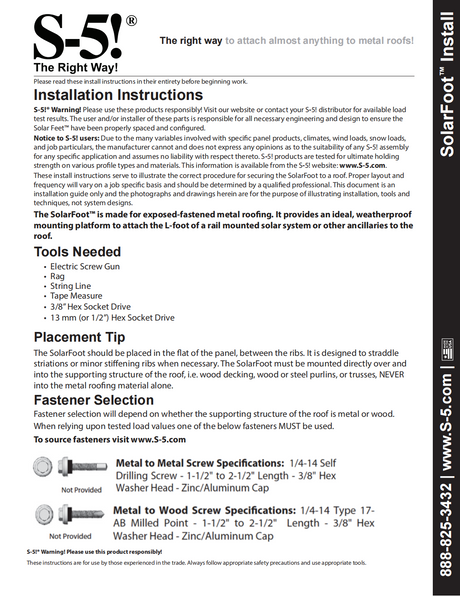

Pick the clamp by the seam profile: S-5-S for snap-together vertical seams, S-5-V and S-5-U for mechanically folded seams, S-5-E for Butler-style double-fold, S-5-H for horizontal seams, S-5-T for T-shaped seams, S-5-Z for round bulb seams, S-5-N 1.5 for nail-strip, S-5-B for copper. For exposed-fastener and corrugated roofs use the CorruBracket, RibBracket or SolarFoot instead. Then add a PVKIT MidGrab between panels and an EdgeGrab at each edge; the grabs carry the UL 2703 ground path.

The Complete Railless Roof Mount Package bundles the clamps and grabs for a typical array. Tell us your roof profile and panel count and we will put the exact kit together. S-5! installation sheets and torque values are on each product page.

See all 18 products ↓

Have a question? Talk to an engineer.
View as
Common questions

Before you order.

If yours isn't here, ask an engineer. It costs nothing and it's the step most people skip.

What if I'm not sure this is the right product?

Ask before you order. Send us what you need to run, or your pool or well figures, and an engineer will confirm the choice — it costs nothing. Or use the finder below, which sizes from what you actually run and shows its reasoning.

Compare /3
