What it is, and what it is for
✅ In stock — ships in 1–2 business days from our US warehouse, or pick up in Las Vegas, NV. Sold by an authorized Growatt distributor.

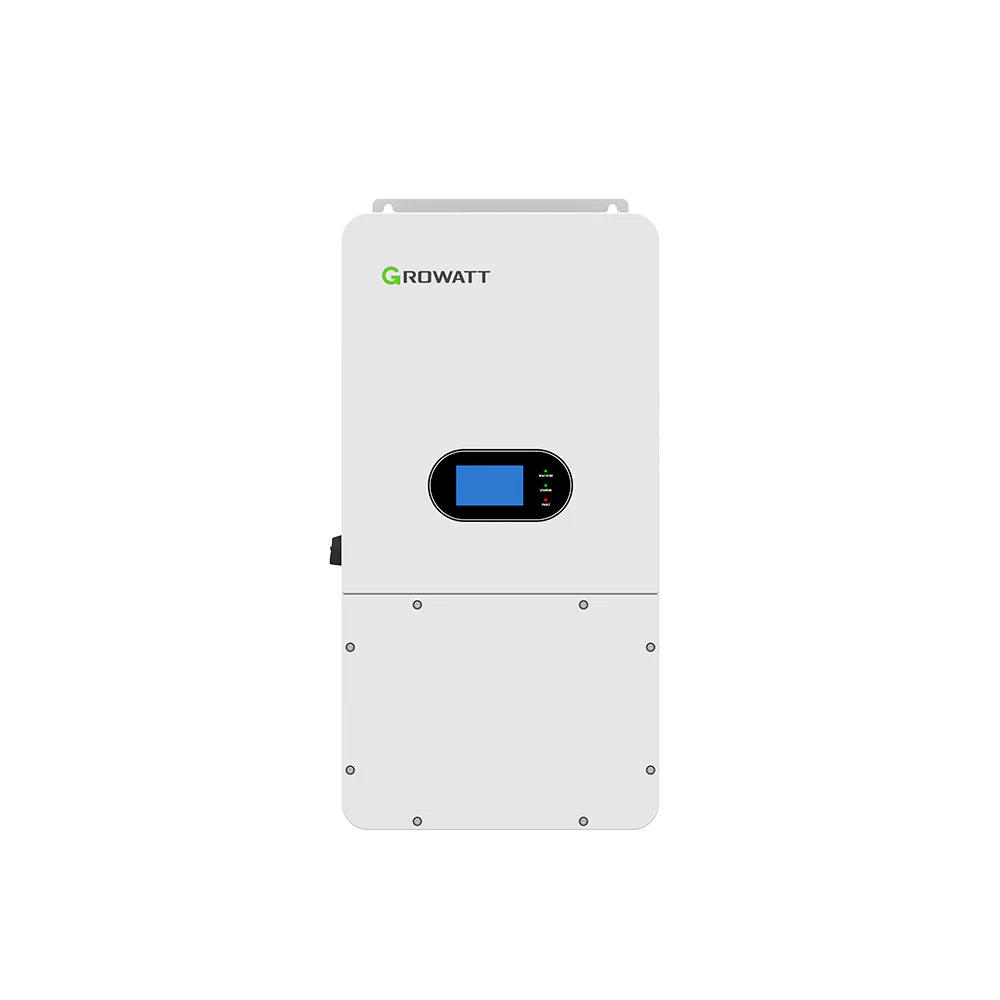

The Growatt SPH 10000TL-HU-US is a 10 kW split-phase (120/240 V) hybrid inverter for US homes and small businesses. It runs your solar panels, charges a 48 V battery, and switches your loads to backup power in 10 ms when the grid goes down, fast enough that computers and Wi-Fi stay on.
Key features
- 10,000 W rated AC output, 120/240 V or 120/208 V split-phase.
- Up to 15,000 W of solar across 3 MPPTs, so you can oversize the array and use roofs facing different directions.
- 48 V battery, 40–60 V range, with up to 200 A (10 kW) charge and discharge.
- 10 ms UPS-grade backup transfer.
- Works for new installs, AC-coupled retrofits onto an existing solar system, and DC-coupled systems.
- Parallel up to six units, including a 208/220 V three-phase system.
- Built-in AFCI, Type II surge protection on DC and AC, ground-fault and anti-islanding protection.
- 97.5% peak efficiency, MPPT efficiency ≥99.5%.
- Listed to UL 1741 SA/SB, IEEE 1547, CA Rule 21 and HECO Rule 14; 10-year warranty.
Which battery works with the SPH 10000TL-HU-US?
The SPH is a 48 V low-voltage inverter. Pair it with the Growatt ALP LV-US 48 V battery (5.12 kWh per module, up to 40.96 kWh), which talks to the inverter over CAN. Growatt's APX battery is a high-voltage (385 V) battery for the MIN XH-US series and does not work with the SPH. Lead-acid batteries are also supported.
How big a system does it run?
With 10 kW of continuous output, the SPH can carry most homes' everyday loads on backup: fridge, lights, internet, furnace fan, well pump and a window or mini-split AC. A typical pairing is 10–15 kW of panels and 10–20 kWh of ALP battery. Send us your loads and we'll size it for free, or see all Growatt inverters and batteries.
FAQs
Is the SPH 10000TL-HU-US a split-phase inverter?
Yes. It outputs 120/240 V split-phase (or 120/208 V), so it can power a standard US home panel, including 240 V loads.
Can I add it to an existing solar system?
Yes. It supports AC-coupled retrofits, so you can add battery backup to an existing grid-tie solar system.
Does it work with the Growatt APX battery?
No. The APX is a high-voltage battery for the MIN XH-US series. The SPH uses a 48 V battery such as the Growatt ALP LV-US.
What warranty does it have?
Growatt's 10-year warranty, supported in the US. We're an authorized Growatt distributor, so your unit is a genuine US model.
Specifications are from Growatt's datasheet and are for reference. Installation must follow the manual, the NEC and local code, be carried out by a licensed electrician, and be approved by your utility where grid-connected.
1 component
Each one is a product we sell on its own, so you can read its full listing, and replace or add to it later.
Published before you buy. No email required.
Every number, by component.
The figures the manufacturer publishes. The datasheet above is the reference if the two ever differ.
| Specification | Details |
|---|---|
| Maximum DC Input | 15,000W |
| MPPT Voltage Range | 150V - 450V / 370V |
| Number of MPPTs | 3 |
| Maximum Charging and Discharging Current | 200A |
| Continuous Charging and Discharging Power | 10,000W |
| Battery Voltage Range | 40V - 60V |
| AC Output Power | Rated Power: 10,000W Max. Apparent Power: 10,000VA Nominal AC Voltage: 120V/208V, 120V/240V Split |
| Efficiency | Peak: 97.5% MPPT Efficiency: ≥99.5% |
| Cooling | Smart cooling |
| Communication Interfaces | RS485/CAN/USB; Optional: WIFI/4G cellular |
| Protection Devices | Type II Surge Protection (DC and AC sides), AFCI, Anti-islanding, Ground fault monitoring, Grid monitoring, Residual-current monitoring unit |
| Physical | Dimensions (W / H / D): 440/855/256mm Weight: 48.84kg |
| Operating Environment | Temperature: -25°C to +60°C with derating above 45°C Noise Emission: ≤ 30 dB(A) |
| Warranty | 10 Years |
| Compliance | IEEE1547, CA RULE21, RULE14(HECO), UL1741, UL1741SA/SB, CSA C22.2, PREPA, UL1699B, UL1741 CRD, FCC Part15 Class B, Sunspec |
