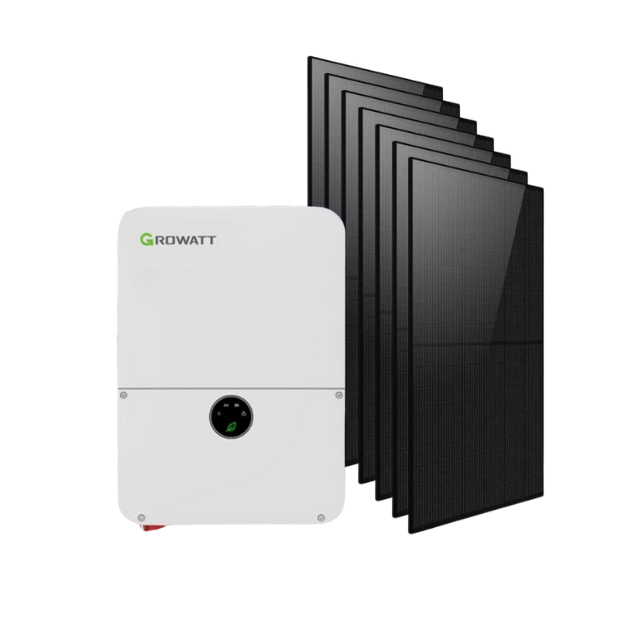

6 KW Grid-Tie Solar System with 7000W Panels
$4,399.99
$6,599.99
Unit price /
Unavailable
With backup power and dark start operations
Higg Efficiency Bifacial Solar Panel
Description
Description
A comprehensive and powerful solution for residential solar energy needs. This robust system combines the efficiency of the Growatt 6kW MIN 6000TL-XH-US Grid-Tie Inverter, and the high-performance 7000W Rigid Bifacial Solar Panels to provide an unrivaled off-grid experience.
Product Features

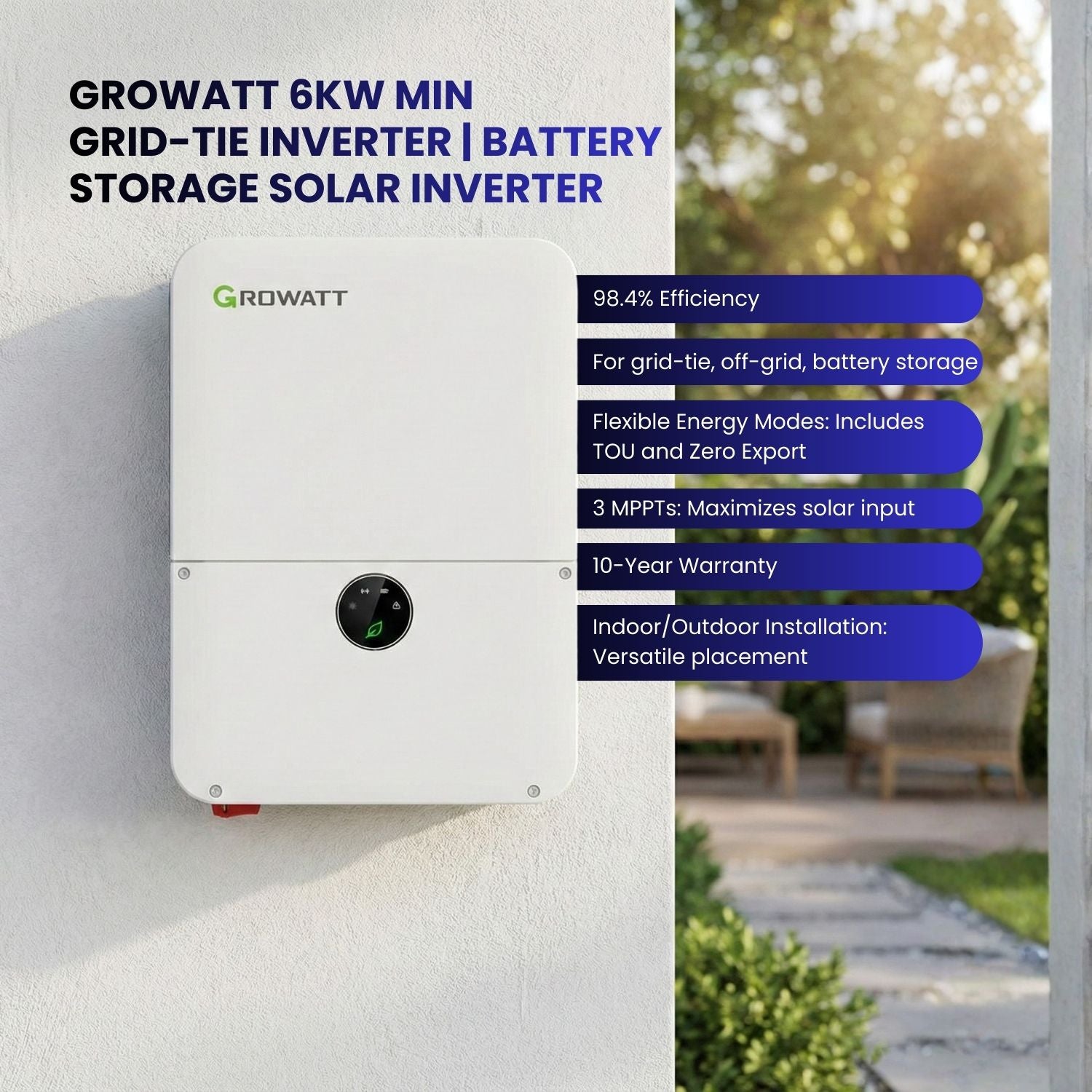

Growatt 6kW MIN 6000TL-XH-US Grid-Tie Inverter:
- Battery Compatibility: Ready for both DC Coupled and AC Coupled systems, compatible with Growatt ARO/APX HV and LG Prime(Gen3) batteries.
- High Yields: With a DC/AC ratio up to 2.0, 3 MPP trackers, and a maximum efficiency of 98.4%, it ensures superior energy conversion.
- Backup and Dark Start: Offers backup power capabilities and can start without grid power, ensuring your home is never without energy.
- Comprehensive Protection: Supports Rapid Shutdown (RSD) and Arc Fault Circuit Interrupter (AFCI) for enhanced safety
- Versatile Energy Management: Features modes like Self-consumption, Zero Export, TOU, and Off-grid to optimize energy use and savings.
- Standards Compliant: Meets UL1741SA/SB, CA Rule 21, and HECO standards, ensuring broad acceptance and regulatory compliance.
- Easy Monitoring: The WiFi module provides plug-and-play online monitoring through mobile or web, enabling easy management of your power system.
- Leading Functions: Offers whole home backup and dark start operation for a comprehensive energy solution.
- Installation Flexibility: Designed for both indoor and outdoor, wall-mounted installations, accommodating a variety of residential setups.
- Trusted Manufacturer: Growatt, a global leader in solar technology, provides innovative products that maximize energy efficiency and savings.
440W Monocrystalline Bifacial Solar Panel (x16):
- High-efficiency monocrystalline cells for superior performance
- 440W power output per panel with a total array power of 7040W
- Durable aluminum frame and anti-reflective glass for weather resistance
- Easy installation with pre-drilled mounting holes
- Bypass diodes to minimize shading impact on performance
- Over 30 years of service life with a 25-year manufacturer warranty
- Eco-friendly power generation to reduce carbon footprint
SPECIFICATIONS
SPECIFICATIONS
| Inverter Specification | |
|---|---|
| Manufacturer | Growatt |
| Type | Grid-Tied/ Battery Storage |
| AC Power | 6.0kW |
| Max PV Input Power | 12 kW |
| MPP Trackers | 3 |
| MPPT Voltage Range | 50~550V |
| Max Efficiency | 98.4% |
| Compatible Battery | Growatt ARO/APX HV Battery, LG Prime(Gen3) Battery |
| Warranty | 10 years |
| Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
| PV INPUT - Max Input Voltage | 600V |
| PV INPUT - Full load Voltage Range | 210~500V |
| PV INPUT - Max Input Current per MPPT | 13.5A |
| PV INPUT - Max Short-circuit Current per MPPT | 16.9A |
| Battery Connection - Battery Voltage Range | 360~550V |
| Battery Connection - Rated Battery Voltage | 400V |
| Battery Connection - I/O DC Current | 14.3A |
| Battery Connection - I/O DC Power | 5.0kW |
| AC OUTPUT (GRID) - Nominal Power | 6.0kW |
| AC OUTPUT (GRID) - Max Output Current | 25A |
| AC OUTPUT (GRID) - Nominal AC Voltage | 208/240V |
| GENERAL DATA - Dimensions(W*H*D) | 15.75*22.4*6.98 inch (400*569*170.5mm) |
| GENERAL DATA - Weight | 32.3lbs (14.65kg) |
| Installation | Indoor, Outdoor, Wall-mounted |
| Monitoring Module | WiFi+ LAN, 4G(Optional) |
| Solar Panel Specification | |
|---|---|
| Panel Type | Monocrystalline Bifacial |
| Power Output | 440W |
| System Voltage | 32V |
| Cell Efficiency | 20-22% |
| Frame Material | Aluminum |
| Dimensions | 1722mm x 1134mmX30mm |
| Weight | approx. 25-30 lbs |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP65 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
