JA Solar JAM66D45 LB 605W N-Type Double Glass Bifacial Module(0.395/W)
solar industry experience
10,000+ American
customers
return policy
Warranty
What it is, and what it is for

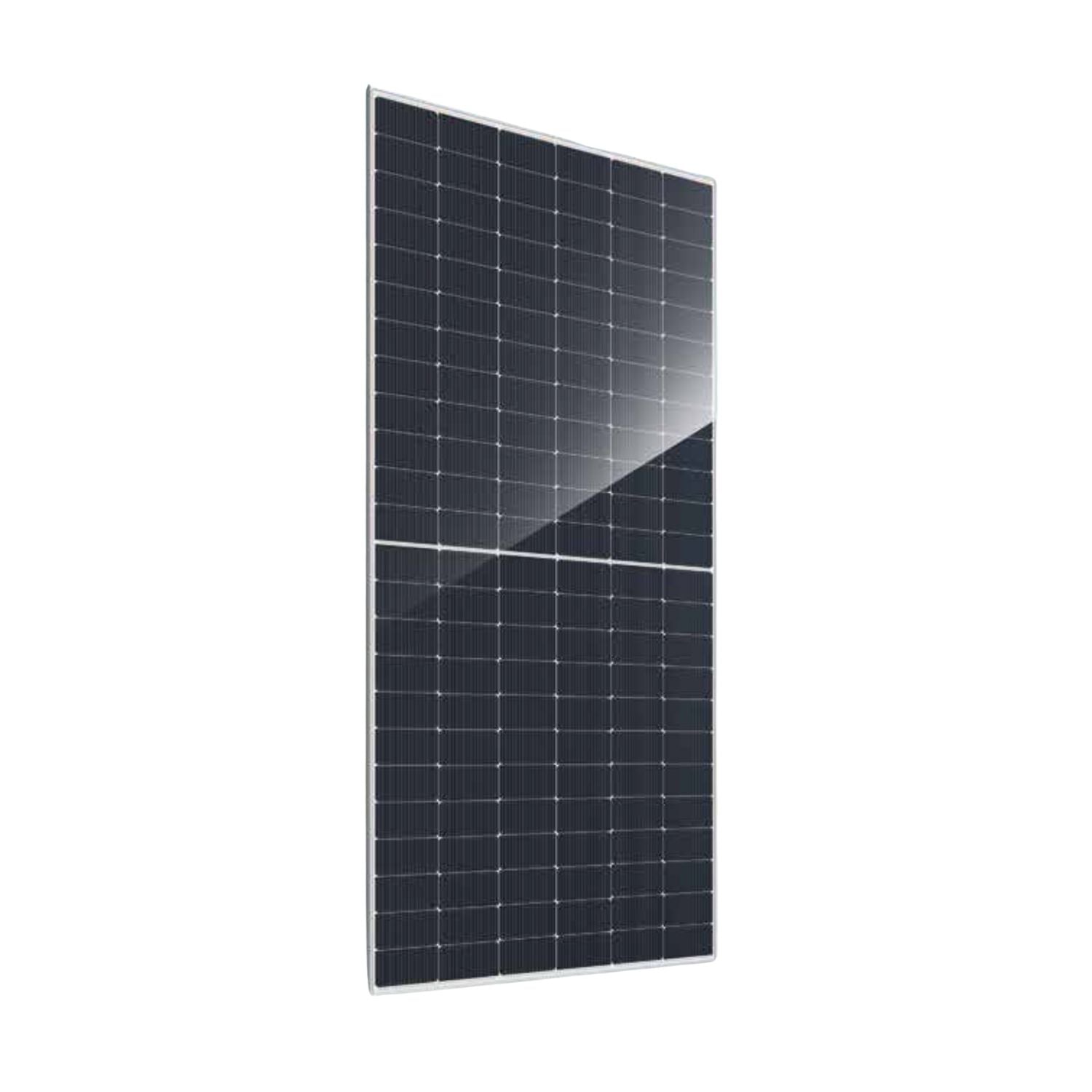

The JA Solar JAM66D45 LB 605W is a high-performance N-Type double glass bifacial solar panel designed for commercial, industrial, and utility-scale solar installations. Built on JA Solar’s DeepBlue 4.0 Pro platform, this module delivers excellent energy yield, enhanced reliability, and a lower levelized cost of electricity (LCOE).
Featuring advanced N-Type Bycium+ cells with 16-busbar (16BB) half-cell technology, the JAM66D45 LB provides outstanding efficiency and stable power output. The bifacial double-glass design enables energy generation from both the front and rear sides of the panel, allowing additional energy gain from reflected sunlight depending on installation conditions.
With a module efficiency of up to 22.4%, this solar panel maximizes power generation per square meter while maintaining strong performance in different environmental conditions. Its low temperature coefficient of −0.29%/°C helps maintain higher output in hot climates, while improved low-irradiance performance ensures better energy production during cloudy or low-light conditions.
Published before you buy. No email required.
Every number, by component.
The figures the manufacturer publishes. The datasheet above is the reference if the two ever differ.
Technical Specifications
| Electrical Parameters (STC) | |
|---|---|
| Rated Maximum Power (Pmax) | 605 W |
| Open Circuit Voltage (Voc) | 47.9 V |
| Maximum Power Voltage (Vmp) | 39.6 V |
| Short Circuit Current (Isc) | 16.00 A |
| Maximum Power Current (Imp) | 15.28 A |
| Module Efficiency | 22.4% |
| Temperature Characteristics | |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.045% / °C |
| Mechanical Parameters | |
| Cell Type | N-Type Mono |
| Number of Cells | 132 Cells |
| Dimensions | 2382 × 1134 × 35 mm |
| Weight | 33.2 kg |
| Front / Back Glass | 2.0 mm / 2.0 mm Double Glass |
| Junction Box | IP68, 3 Bypass Diodes |
| Connector | QC 4.10-351 / MC4-EVO2 |
| Operating Conditions | |
| Maximum System Voltage | 1500 V DC |
| Operating Temperature | -40°C to +85°C |

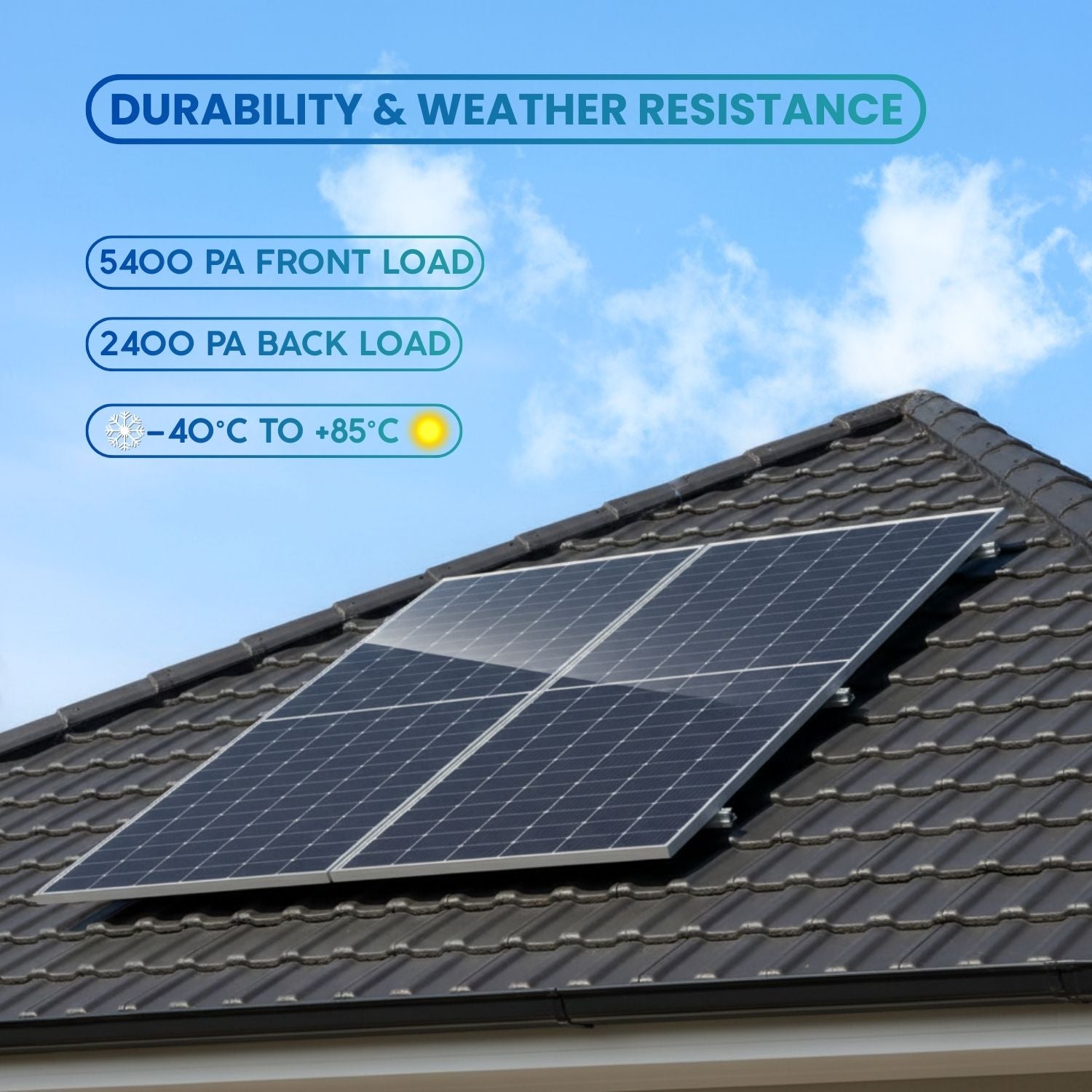

| Maximum Front Load | 5400 Pa |
| Maximum Rear Load | 2400 Pa |
| Bifaciality | 80% ±10% |
