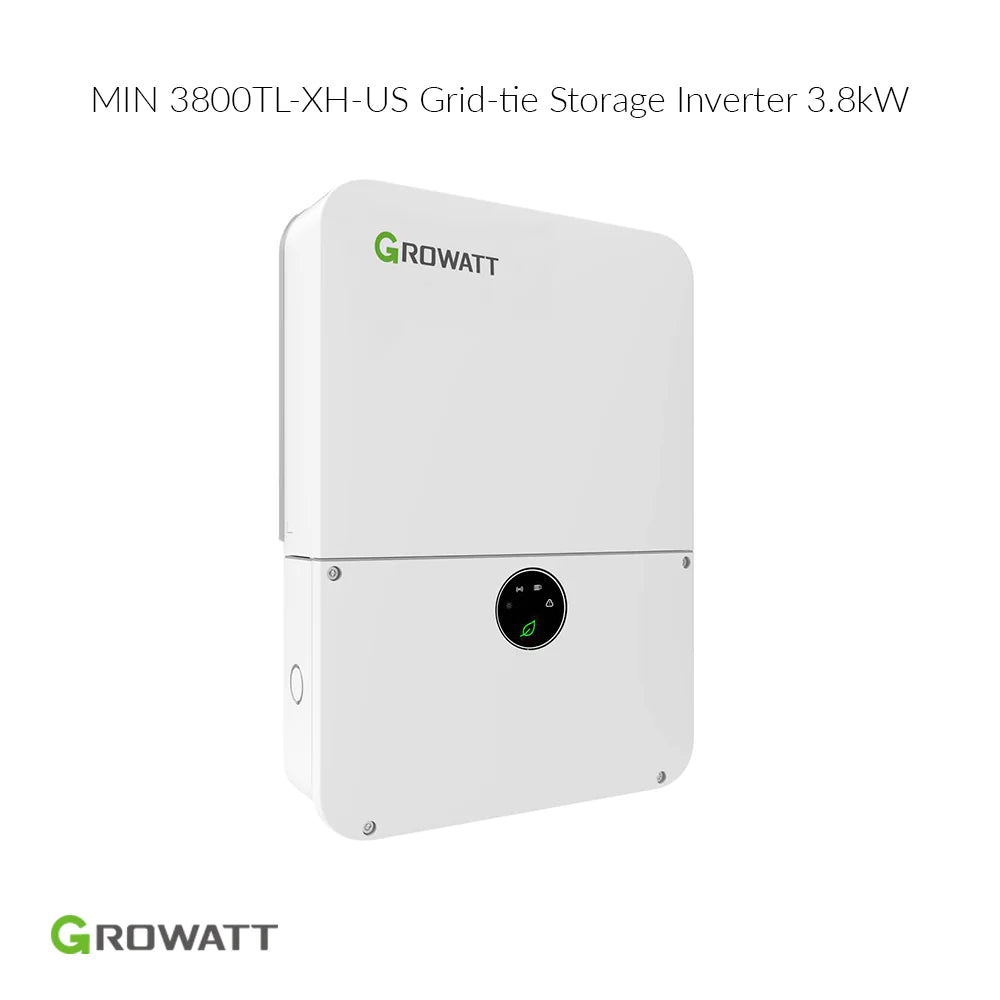

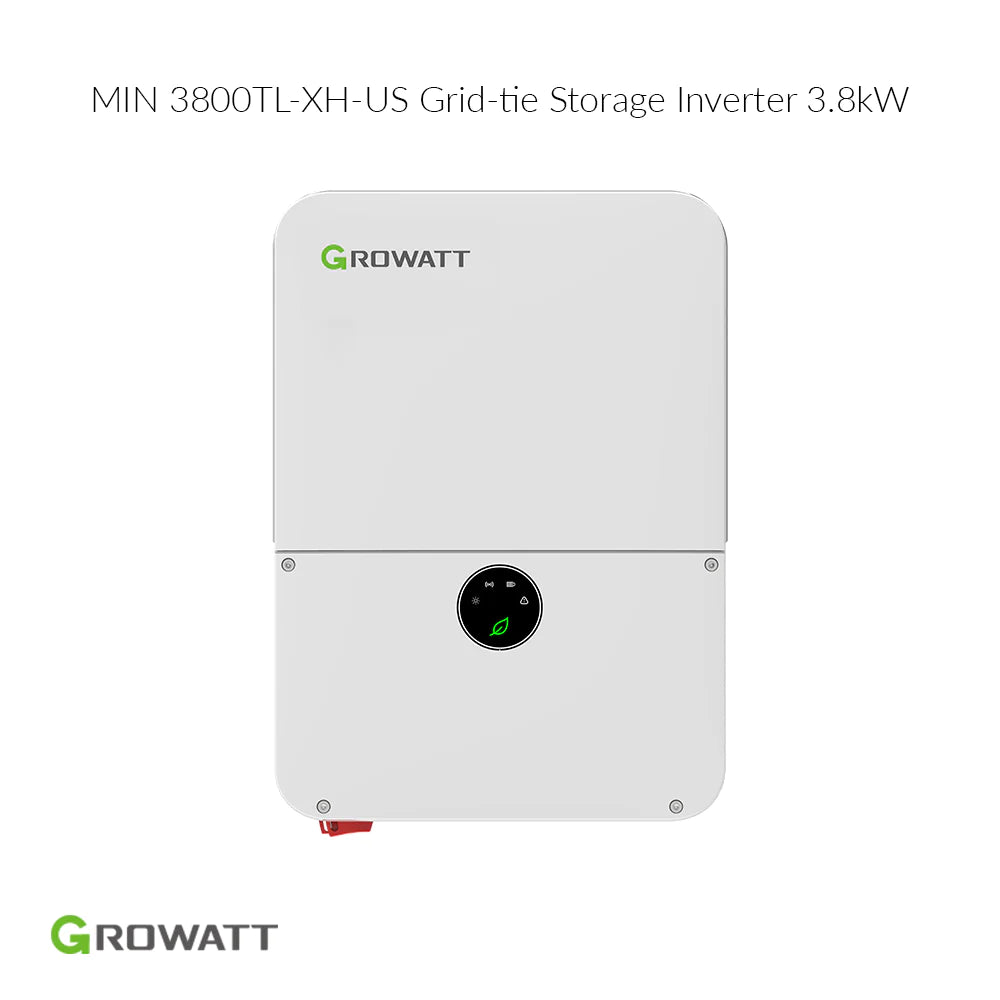

Growatt 3.8kW MIN 3800TL-XH-US Grid-Tie Inverter | Battery Storage Solar Inverter

$1,475.00 ~~$2,499.99~~

Shipping calculated at checkout.

98% Peak Efficiency: Maximizes solar conversion.
Hybrid Use: For grid-tie and battery systems.
Dual MPPTs: Enhances solar harvest.
Smart Monitoring: Via WiFi and LAN for system control.
Battery-Ready: Suits DC and AC coupled setups.
Advanced Safety: With rapid shutdown and AFCI.
Energy Modes: Supports self-consumption, zero export, and more.
Standards Compliant: Meets IEEE1547, CA Rule 21.
Natural Cooling: No need for fans, less maintenance.
10-Year Warranty: With extension options.

Talk to Real Experts Anytime

Lifetime tech support from our in-house specialists

Hassle Free Warranty

Effortless Warranty for Your Ease.

Unbeatable Value, Guaranteed

Find it cheaper elsewhere? We'll match it.

Description

Growatt 3.8kW MIN 3800TL-XH-US Grid-Tie | Battery Storage Solar Inverter

Embrace the future of home energy with the Growatt 3.8kW MIN 3800TL-XH-US, a smart inverter solution designed for the modern, energy-efficient home. With its compact design and remarkable 98.0% efficiency, this inverter is perfect for battery-ready rooftop solar systems, offering both grid-tie and battery storage capabilities.

Smart Connectivity: Features integrated WiFi, LAN communication modules, and Tigo Transmitter, enabling seamless monitoring and management.
Flexible Battery Integration: Ready for both DC Coupled and AC coupled systems, providing versatility in storage options.
Reliable Backup Power: Supports backup power and dark start operations, ensuring energy availability during outages.
Enhanced Safety: Comes with a rapid shutdown solution and AFCI integrated for increased protection.
Integrated Energy Management: Includes an Integrated EMS for smart energy modes like self-consumption, zero export, TOU, and off-grid.
Compliance: Meets UL1741SA, CA Rule 21 & HECO standards, fitting into regulatory requirements seamlessly.
IoT and Cloud Monitoring: Built-in 4G/Wi-Fi Comm. with APP support for easy access to IoT integrated cloud services and monitoring.
High Efficiency: Delivers up to 98.0% efficiency, maximizing the conversion of solar energy into usable electricity.
Dual MPPT Tracking: Dual MPPT trackers enhance solar harvest, adapting to varied roof orientations.
Comprehensive Warranty: Supported by Growatt's extensive warranty, ensuring reliability and customer satisfaction.

Optimize your home’s energy with the Growatt 3.8kW MIN 3800TL-XH-US Inverter, combining cutting-edge technology with smart energy management for unparalleled efficiency and reliability.

SPECIFICATIONS

Specification	Details
Manufacturer	Growatt
Model	MIN 3800TL-XH US (WIFI/LAN+TIGO)
Rated Power Output [W]	3800
Length [mm (in)]	569 mm (22.41 in)
Width [mm (in)]	400 mm (15.75 in)
Depth [mm (in)]	170.5 mm (6.98 in)
Weight [kg (lb)]	17.4 kg (38.36 lb)
Wormanship Warranty Period [Years]	10
Inverter Type	Hybrid inverter
Maximum/Peak Efficiency [%]	98
CEC weighted efficiency @ 240V [%]	97
Transformer / Transformerless	Transformerless
DC Power Rating [W]	7600
Nom. DC Voltage [V]	360
Max. Input Power [W]	7600
Max. Input Voltage [V]	600
Min. DC voltage / start voltage [V]	50
Number of DC String Inputs (Inlets)	4
Number of MPP Trackers	2
Max. Input Power per MPPT [W]	3800
Max. Input Voltage per MPPT [V]	600
Max. Input Current per MPPT [A]	16.9
Voltage Lower Limit for MPP Range [V]	50
Voltage Upper Limit for MPP Range [V]	550
DC Disconnection Type	Integrated
Reverse-Polarity Protection	Yes
Ground-Fault Isolation Detection	Yes
AC Power Rating [W]	3800
Nominal AC Power [W]	3800
Max. AC Power [W]	3800
AC voltage range [V]	208V: 183-229V / 240V: 211-264V
AC grid frequency [Hz]	60
Max. output current [A]	16
Nominal AC Voltage [V]	208/240
Maximum AC Voltage Range [V]	264
Nominal AC Frequency [Hz], range [Hz-Hz]	60
AC Connection Type	L1/L2/N/PE
AC Current Distortion [THD%]	<3%
AC Input Wire Gauge Range [AWG]	6 AWG - 8 AWG
Sleep (Night) Consumption [W]	<5W
NEMA Enclosure Rating	NEMA4X (IP65)
Cooling Method	Natural Convection
Ambient Temperature Range [°C(°F)]	-25°C to +60°C (-13°F to +140°F)
Operating Humidity [%]	0~95%
Operating Altitude [ft/m]	9843ft (3000m)
Display	OLED
Communication	RS485 included, WiFi/4G Optional
Basic Warranty [Years]	10
Warranty Extension Options [Years]	15, 20
Compliances	IEEE1547, CA Rule21, Rule14 (HECO Compliant), FCC Part15 Class B, UL1741, UL1741SA, CSA C22.2, UL1699B, UL1741 CRD
AC grid range [Hz]	45-65
Max. recommended PV power (@ module STC)	7600
